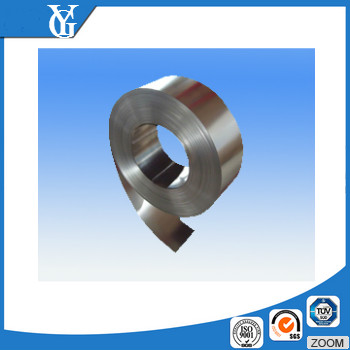

FeCrAl Resistance Strip

Product Categories

FeCrAl Alloy

FeCrAl Resistance Strip

Code: OCr25AL5、OCr21AL4、OCr23AL5、1Cr13AL4 Material: Fe-Cr-Al strip Specifications: Thickness:0.05～0.2mm,width:30～200mm Features: electric iron chrome aluminum alloy wire heat resistance along with chromium and aluminum content increased and improved, has a superior antioxidant, anti-and anti-carburizing of sulfur, and has a light weight, high surface load, service life Long, low price range, it is widely used in industrial furnace, metallurgy, machinery, household appliances and other industries producing heating elements and resistance elements

Inquire Now

Product Details

Material	Thickness	Width
OCr20AL5	0.05～0.2mm	30～200mm

Used for automobile exhaust purification wide strip：

Material	Thickness	Width
OCr20AL5	0.05～0.2mm	30～200mm

Use： For the automotive, motorcycle exhaust purification metal honeycomb carrier (gas mask) with good thermal stability, good thermal conductivity, strong antioxidant, anti-shake is good, and good machinability. Starting and braking resistor alloys：

Material	Thickness	Width
OCr15AL5	0.05～0.2mm	30～200mm
OCr19L3	0.5～3.5mm	20～240mm
OCr13AL4	0.5～3.5mm	20～240mm
OCr20Ni35	0.5～1.5mm	20～240mm

Use： The product is used for motorcycle starting and braking resistor, temperature monitoring, drilling oil brake resistors, power system grounding resistance of the center cabinet, with a smooth surface, uniform resistance, good processing plasticity, resistivity stability. Bright heater. Ribbon，strip：

Material	Thickness	Width
OCr13AL4	0.06～2.5mm	3～240mm
OCr19AL3	0.06～2.5mm	3～240mm
OCr20AL5	0.06～2.5mm	3～240mm
OCr25AL5	0.06～2.5mm	3～240mm

Use： The products are widely used in cement resistance, sealing machine, diamond, electronic industry and a variety of ignition electrodes and electrical voltage electrical heating. Product chemical composition uniformity, high resistance, long service life.

Technical parameters of Fe-Cr-Al alloy strip Table:

W*T mm	cm2/m	0Cr25AL5			0Cr21AL6Nb			0Cr27AL7Mo2
W*T mm	cm2/m	Ω/m	cm2/Ω	g/m	每米电阻 Ω/m	cm2/Ω	每米重量 g/m	每米电阻 Ω/m	cm2/Ω	每米重量 g/m
3.5× 25	570	0.00811		621.25	0.01657		621.25	0.0175		621.25
3.5×30	670	0.01014		745.5	0.01387		745.5	0.01457		745.5
3.5×35	770	0.01159		869.25	0.01184		869.25	0.01249		869.25
3.5×40	870	0.01352		994	0.01036		994	0.0109		994
3.5×50	1070	0.01623		1242.5	0.00829		1242.5	0.00874		1242.5
3.0×25

<
